Customization options for HL-JC-36CH-AR Waterproof power distribution

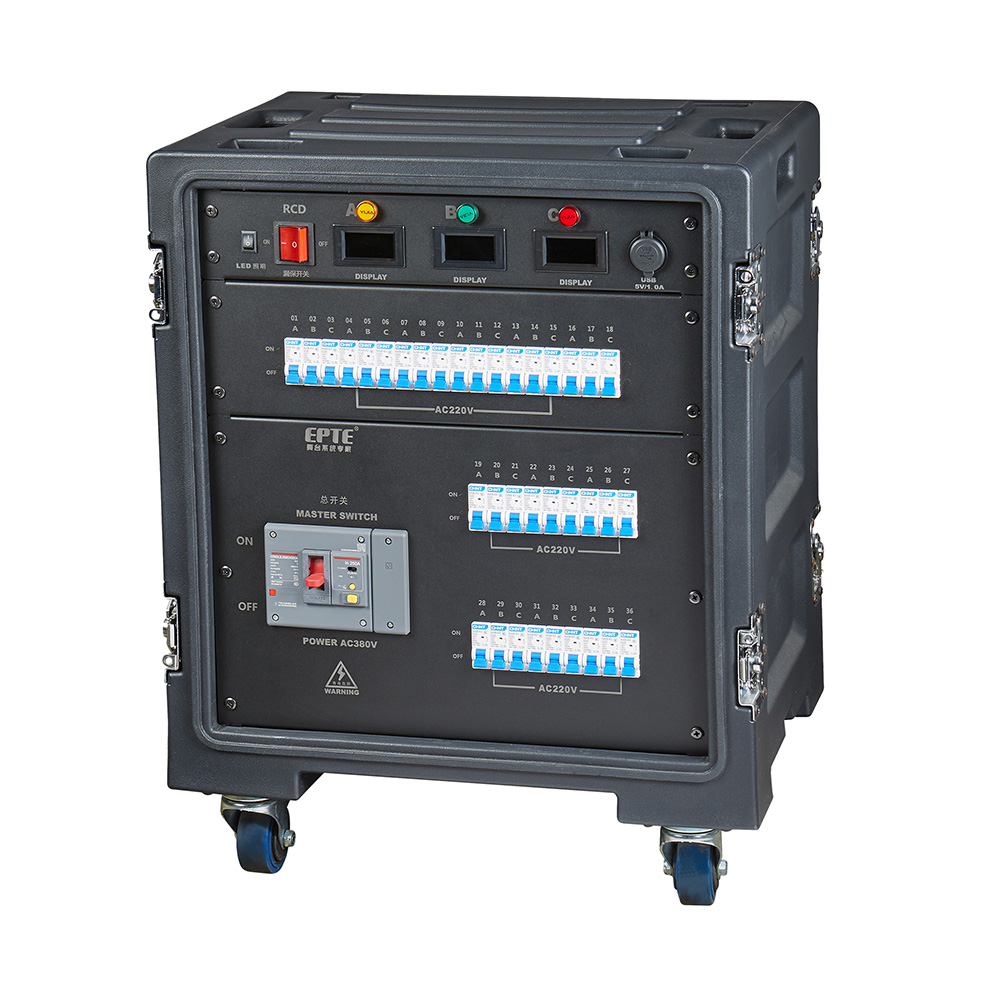

The EPTE Power HL-JC-36CH-AR Waterproof Power Distribution box ensures safe, reliable electrical management in harsh environments. Designed for durability and efficient power distribution, it’s ideal for industrial and outdoor applications requiring robust protection and performance. This guide outlines real-world customization options for the HL-JC-36CH-AR so engineers, rental houses, event producers, and facility managers can match the product to specific site, load, and safety requirements.

Designing for the job: core customization categories

Enclosure materials and ingress protection

Choosing the right enclosure material is the first decision for any waterproof power distribution solution. The HL-JC-36CH-AR is available with corrosion-resistant stainless steel or UV-stable polycarbonate housings. For marine, coastal, or chemical environments, 316 stainless steel or specially coated aluminum reduces long-term corrosion risk. For lighter-weight portable use, reinforced polycarbonate or fiberglass-reinforced polyester (GRP) offers impact resistance and lower weight.

Ingress protection should be specified according to expected exposure. Many outdoor electrical enclosures use the IP (Ingress Protection) rating defined in IEC 60529; see the overview at IP Code (IEC 60529) for details. Typical options for the HL-JC-36CH-AR: IP65 for dust-tight and water jet protection, IP66 for heavy water jets, and IP67 for temporary immersion. Selecting the appropriate IP rating reduces failure risk from rain, hose-down cleaning, or accidental immersion.

Form factor and mounting options

Customization extends to size and mounting. Fixed-install variants are supplied with flange or pad mounts for permanent installation on poles, walls, or skids. Portable units can include reinforced carrying handles, forklift pockets, or skid frames. For stage and touring use, shock-mount and vibration-damping options protect internal wiring and connectors during transport. Consider site access constraints: pad-mounted or pole-mounted boxes require different clearance and servicing access, which should be specified up front to avoid retrofit costs.

Electrical customization: connectors, circuits, and distribution logic

Connector types and panel layout

Connector selection is arguably the most visible customization. The HL-JC-36CH-AR supports industry-standard locking connectors (e.g., Camlock, Socapex, Neutrik, IEC, or stage-specific Multipin). Choosing connectors depends on the equipment served (lighting, audio, motor control) and local safety conventions. For touring and entertainment, Socapex and multipin connectors reduce cabling bulk, while heavy-duty Camlocks are common for raw power feeds.

Panel layout customization allows mixing connector types on a single faceplate, clearly labeled circuits, and color-coded feeds for rapid deployment. Thoughtful placement reduces cable crossing and trip hazards on site.

Circuit count, current ratings, and breaker choices

The HL-JC-36CH-AR's base model provides 36 channels, but channel function and ratings are configurable. Options include:

• Breaker types: thermal-magnetic or electronic breakers with selectable trip curves for protecting different load types.
• Per-channel ratings: 10 A, 16 A, 20 A, 32 A, or custom fuse/breaker sizes depending on load.
• Ganged or isolated circuits: combining channels onto a single feed for larger loads or isolating critical loads on dedicated feeders.

Matching breakers to load characteristics (inrush currents for motors or LED drivers) prevents nuisance trips. For guidance on electrical safety and distribution best practices, refer to general power distribution principles at Power distribution.

Monitoring, metering, and remote control

Adding intelligence increases uptime and simplifies maintenance. Options include per-channel current meters, total load meters, power factor monitoring, and energy logging. Remote telemetrics via Ethernet, Modbus TCP, or industrial protocols allow real-time monitoring and integration into building management systems (BMS) or site dashboards.

Advanced customization can include remote breaker control (via secure networked relays), scheduled circuits, or fault-event logging. For mission-critical installations, add redundant network paths and alarm reporting to avoid single points of failure.

Environmental and mechanical customizations for durability

Seals, gaskets, and cable entry solutions

Proper sealing prevents moisture ingress and extends equipment life. Options include double-gasketed doors, silicone or EPDM door seals rated for temperature ranges, and drain/vent filters to equalize pressure while keeping out contaminants. Cable entries can use IP-rated cable glands sized for conductor bundles, or pre-fabricated IP-rated cable troughs with strain relief. For temporary installations, vertical cable sockets with splash covers reduce water pooling around connections.

Thermal management: passive and active options

Thermal control is crucial for densely loaded distribution boxes. Passive options include heat-dissipating fins, thermally conductive potting for internal busbars, and ventilated compartments with insect-proof mesh. Active options are thermostatically controlled low-profile fans, or explosion-proof heaters for sub-zero environments to prevent condensation and frost.

Specifying thermal performance ensures internal temperatures stay within breaker and connector ratings, reducing the risk of thermal derating or failure. IEEE and IEC standards provide guidance on electrical equipment temperature ranges; consult manufacturer data for component-specific limits (e.g., breaker ambient ratings).

Vibration, shock, and transport protection

For rental and touring users, units can be customized with internal shock mounts, reinforced frames, and lockable covers. Hard-wearing finishes (textured powder coat, ceramic paints) resist abrasion and reduce reflectivity for stage use. Consider impact-absorbing corners and recessed connectors to avoid accidental damage during handling.

Compliance, testing, and installation customization

Certifications and standards customization

Compliance options are critical for acceptance by authorities and clients. Common certifications include CE marking for Europe, UL listings for North America, and RoHS for hazardous substance compliance. For ingress protection and environmental ratings, reference IEC/EN and ISO standards; if a project requires specific documentation (for example, proof of IP67 rating or materials traceability), include factory testing and certification in the scope.

Standards bodies such as the IEEE and IEC provide guidance for electrical safety and distribution; consult IEEE resources at IEEE and IEC/ISO documentation when designing or specifying custom electrical equipment.

Factory and site testing packages

Customized testing packages reduce commissioning headaches. Options include factory acceptance tests (FAT) with witness testing, loop impedance and earth continuity tests, thermal imaging after loaded operation, and FAT-supplied test reports. Site acceptance tests (SAT) and on-site commissioning can be offered to validate performance under actual conditions. Including these services ensures the HL-JC-36CH-AR meets operational needs from day one.

Installation assistance and documentation

Provide as-built wiring diagrams, labeling schemes, and operator manuals tailored to the chosen customization. For complex installations, on-site training or a virtual walkthrough of operation and safety procedures reduces operator errors. Detailed documentation improves maintainability and satisfies regulatory record-keeping requirements.

Cost-benefit comparison of common customization options

Below is a concise comparison table to help stakeholders balance performance needs and budget. Costs are indicative; contact sales for exact pricing.

How to specify HL-JC-36CH-AR Waterproof power distribution for your project

Step-by-step specification checklist

Use this quick checklist when specifying a customized HL-JC-36CH-AR:

1. Define the environment (indoor/outdoor, marine, dusty, temperature extremes).
2. Determine total load, peak inrush, and per-circuit requirements.
3. Select connector types and panel layout to match equipment interfaces.
4. Choose enclosure material and IP rating based on exposure.
5. Decide on monitoring, remote control, and data logging needs.
6. Confirm certifications and factory/site testing scope.
7. Request drawings, wiring diagrams, and maintenance documentation.

Common pitfalls and how to avoid them

Typical mistakes include underspecifying thermal management, mismatching connector types, and ignoring local code or authority having jurisdiction (AHJ) requirements. Prevent these by including an electrical engineer or experienced integrator early in the process and requesting sample panels or mock-ups if possible.

Real-world use cases

Examples where customized HL-JC-36CH-AR solutions add value:

• Outdoor festivals: Mixed connector panels with ruggedized casings, IP66 rating, and hot-swapable breakers for fast field repairs.
• Industrial sites: 316 stainless enclosures, remote monitoring integrated with plant SCADA, and explosion-proof options where required.
• Marine operations: IP67-rated units with sacrificial anodes or special coatings and locking covers for waves and spray.

FAQ

What IP rating should I choose for outdoor installations?

Choose IP66 for heavy rain and jet-cleaning scenarios, IP67 if temporary immersion is possible. For continuous submersion, specify higher protections and consult EPTE Power engineering for specialized enclosures. See the IP Code overview at https://en.wikipedia.org/wiki/IP_Code.

Can the HL-JC-36CH-AR be integrated into a remote monitoring system?

Yes. The HL-JC-36CH-AR supports optional metering and remote communications modules (Ethernet, Modbus TCP, or other industrial protocols) to provide real-time monitoring and control for predictive maintenance and remote fault handling.

What certifications are available for the HL-JC-36CH-AR?

Available certifications include CE, and variants can be produced to meet UL listing or other regional approvals as required. For projects requiring documented compliance, request factory test reports and certification packages prior to order.

How do I size breakers for LED loads with high inrush currents?

Select breakers with appropriate trip curves (e.g., Type D for motor/inductive loads) or use electronic/microprocessor-based breakers that can handle short inrush without nuisance trips. Consult load manufacturer start-up current data and consider staged or soft-start solutions if inrush is extreme.

Can you provide on-site commissioning and testing?

Yes. EPTE Power offers factory acceptance testing and on-site commissioning packages. These can include load testing, thermal imaging, and witness testing to ensure the unit performs as specified.

If you have specific site conditions or load profiles, contact our technical sales team for a custom quote and detailed specification assistance. To view full product details or request a quote for the HL-JC-36CH-AR Waterproof power distribution, contact us or visit the product page.
